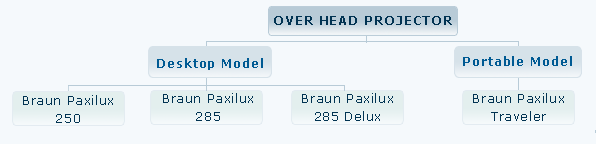

OVER HEAD PROJECTOR




PAXILUX 250
Features
  • Working Stage of 250mm x 250mm
  • 2 x 24V/250W halogen lamps
  • Lens 1 - elements f = 290
  • Light output of 3000 + lumens
  • Tilting angle 0 - 60
  • Condenser lens
  • Net weight 8.7 kg
  • 360 image rotation
  • Dimensions 300 x 310 x 230 mm

  Top

BRAUN PAXILUX 285
Features
  • Working Stage of 285mm x 285mm
  • Excellent lamp - House based on a durable die - cast Aluminium
  • Lens 1 - elements f = 280
  • Light output of 3000 + lumens
  • Tilting angle 0 - 55
  • 2 x 24 V/ 250W halogen lamps
  • Net weight 8.7 kg
  • 360 image rotation
  • Overall size ( w x d x h ) (folded)
    490 x 400 x 720 (263) mm

Top

BRAUN PAXILUX 285 DELUX
Features
  • Working Stage of 285mm x 285mm
  • Lens 3 - element, f = 315 mm
  • Tilting angle 0 - 55
  • 2 x 24 V/ 250W halogen lamps
  • Tilting angle 0 - 55
  • Condenser Lens
  • Light output of 3500 lumens
  • Net weight 8.9 kg
  • 360 image rotation
  • Overall size ( w x d x h ) (folded)
    490 x 400 x 720 (263) mm

Top

PAXILUX TRAVELER
Features
  • Compact & Portable, Reflective OHP
  • Working Stage of 285mm x 285mm
  • Lens f = 280 - 340mm, Vario - focal lens
  • Tilting angle 0 - 60
  • 2 x 24 V/ 250W halogen lamps
  • Dual - Fan Forced Air Cooling System
  • Net weight 5.6 kg
  • Dimensions 430 x 313 x 93 mm

Top
